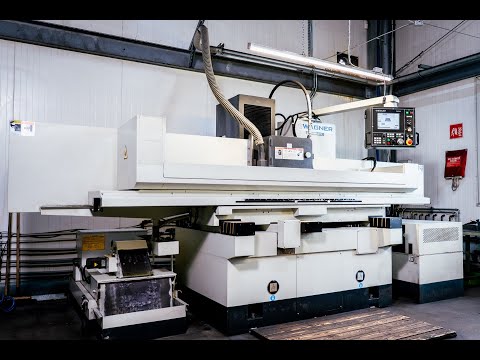

Surface Grinding Machine CHEVALIER FSG-1640ADIV
| Net price | 77657 USD |
| Local tax (VAT) | 23 % |
| Company name |
Maszyneria
Sławomir Konieczko |
| Address | Wita Stwosza 18/13 |
| City | Jelenia Góra |
| Post code | 58-560 |
| region | Dolnośląskie |
| Country | Poland |
| Telephone | +48 603510566 |
| Category | Grinding Machines CHEVALIER › |
| Manufacturer | CHEVALIER › |
Surface Grinding Machine CHEVALIER FSG-1640ADIV was manufactured by the machine manufacturer CHEVALIER. Machine CHEVALIER FSG-1640ADIV was built in 2022 year.
General data | |
|---|---|
| Location | Poland |
| region | Dolnośląskie |
| Year of manufacture | 2022 |
| Warranty | Without warranty |
| Technical condition | Very good |
| Payment | Before receipt |
| Transport | The buyer organizes the transport at his own cost |
Technical parameters | |
|---|---|
| Length of the working table | 1000 mm |
| Width of the working table | 400 mm |
| Maximum table load (evenly distributed) | 440 kg |
| Power of the spindle drive | 3.8 kW |
| Minimum rotary speed of the spindle | 500 1/min |
| Maximum rotary speed of the spindle | 1800 1/min |
| Maximum distance from the table to the spindle axis | 610 mm |
| Minimum longitudinal feed rate (Z-axis) | 5 m/min |
| Maximum longitudinal feed rate (Z-axis) | 25 m/min |
| Diameter of a new grinding wheel | 355 mm |
| Maximum diameter of a grinding wheel | 50 mm |
| Diameter hole in the grinding wheel | 127 mm |
| Number of T-slots in the table | 3 pcs |
| Machine weight | 3.5 t |
Equipment | |
|---|---|
| CHEVALIER iSurface | |
| Electromagnetic chuck | |
| Demagnetizing of the chuck | |
| Balancing machine for dynamic balancing of the grinding wheel | |
| Device for rectilinear truing of the grinding wheel | |
| Magnetic coolant filter (magnetic separator) | |
