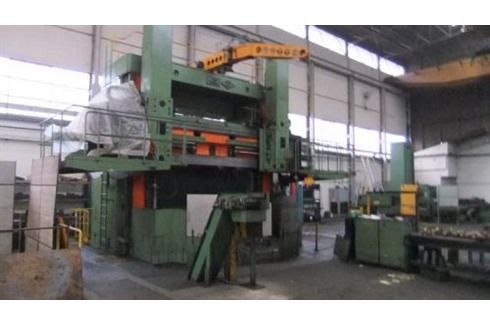

CNC Vertical Turret Lathe KOLOMNA 1540 T

Category CNC Lathes and Turning Centers KOLOMNA ›
Manufacturer KOLOMNA ›

ARCHIVED AD
CNC Vertical Turret Lathe KOLOMNA 1540 T was manufactured by the machine manufacturer KOLOMNA. Machine KOLOMNA 1540 T was built in 1994 year.

General data

Location Italy
Year of manufacture 1994
Warranty Without warranty

Technical parameters

Diameter of the table 4000 mm
Maximum turning diameter 4400 mm
Maximum height of the workpiece 2500 mm
Minimum table rotary speed 0.46 1/min
Maximum table rotary speed 42.5 1/min
Maximum table load 63000 kg
Maximum length of the vertical travel of the transverse beam 1600 mm
Maximum feed rate of the transverse beam 0.352 m/min
Maximum feed rate of the carriage over the transverse beam 0.352 m/min
Number of CNC controlled axles 5 pcs
Length of the lathe 6100 mm
Width of the lathe 10400 mm
Height of the lathe 8400 mm
Weight of the lathe 134 t

Equipment

SIEMENS SINUMERIK 840 C
Chip transporter
