CNC Lathe OMG ZANOLETTI CNC H 350

Category CNC Lathes and Turning Centers OMG ZANOLETTI ›
Manufacturer OMG ZANOLETTI ›

ARCHIVED AD

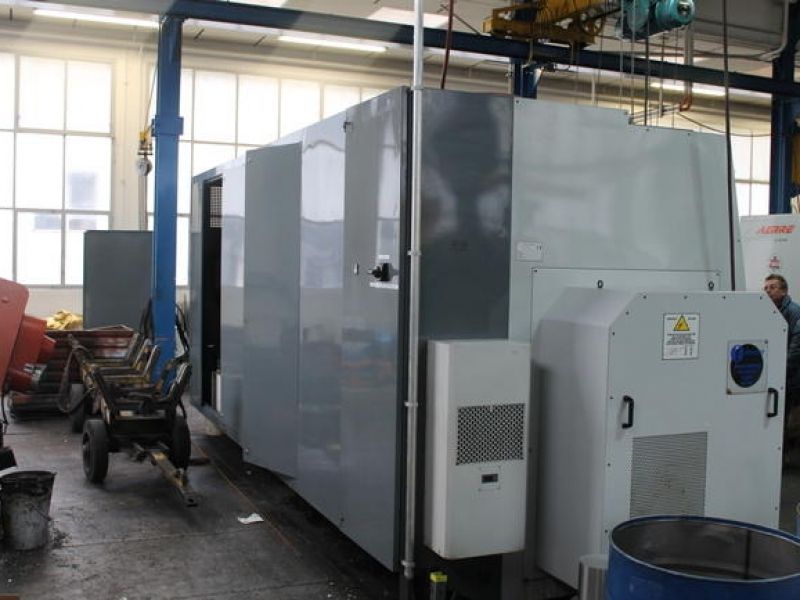

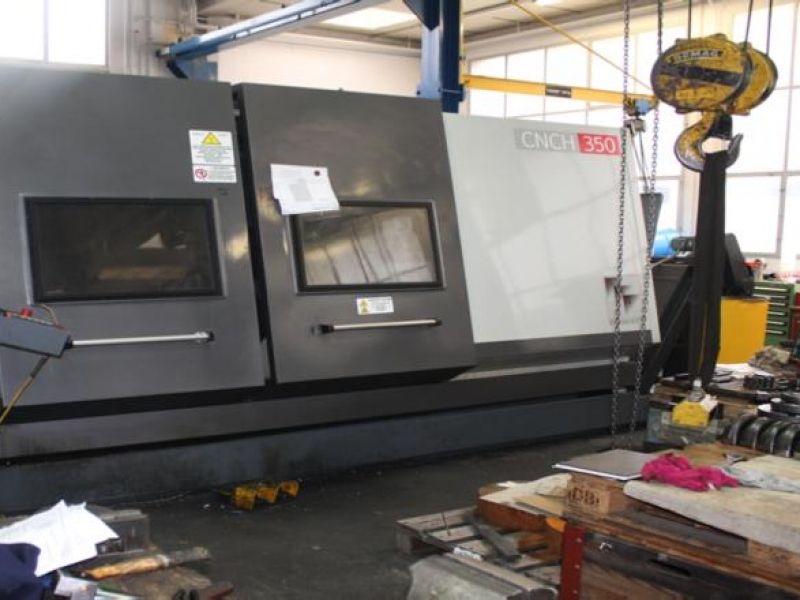

CNC Lathe OMG ZANOLETTI CNC H 350 was manufactured by the machine manufacturer OMG ZANOLETTI. Machine OMG ZANOLETTI CNC H 350 was built in 2008 year.

General data

Location Germany
region Bayern
Year of manufacture 2008
Warranty Without warranty
Technical condition Very good

Technical parameters

Turning diameter over bed (max) 700 mm
Turning diameter over cross slide (max) 545 mm
Maximum travel length in the X-axis 600 mm
Maximum feed rate in X-axis 15 m/min
Maximum feed rate in Z-axis 20 m/min
Maximum power of the main spindle 30 kW
Diameter of the spindle bore 152 mm
Maximum rotary speed of the main spindle 200 1/min

Equipment

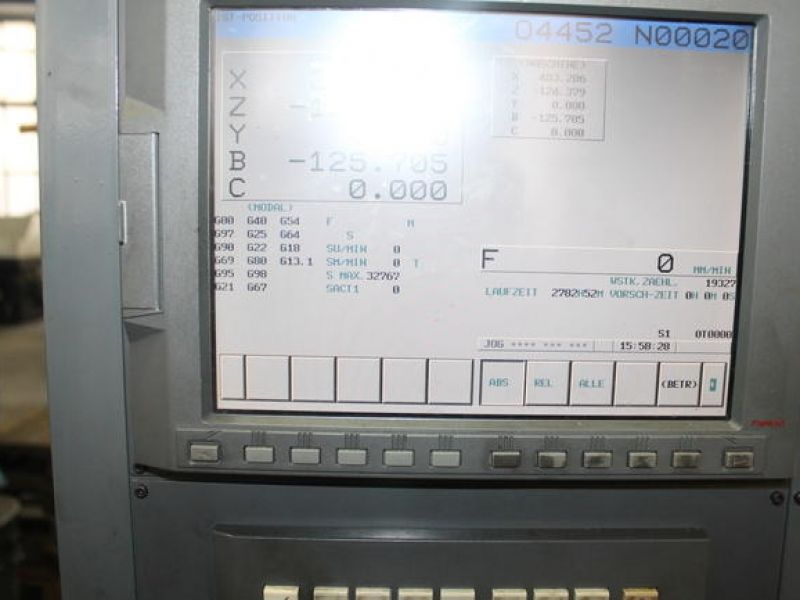

FANUC 21i-TB
CE Declaration
