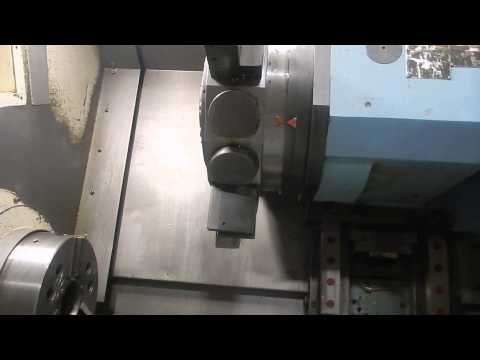

CNC Lathe KIA SKT-28 LM
CNC Lathe KIA SKT-28 LM was manufactured by the machine manufacturer KIA. Machine KIA SKT-28 LM was built in 2004 year.
General data | |
|---|---|
| Location | United States |
| region | Michigan |
| Year of manufacture | 2004 |
| Warranty | Without warranty |
| Stock number | 12258 |
Technical parameters | |
|---|---|
| Maximum turning length (Z-axis) | 1067 mm |
| Turning diameter over bed (max) | 650 mm |
| Turning diameter over cross slide (max) | 300 mm |
| Maximum travel length in the X-axis | 221 mm |
| Maximum feed rate in X-axis | 20 m/min |
| Maximum feed rate in Z-axis | 24 m/min |
| Maximum power of the main spindle | 30 kW |
| Maximum rotary speed of the main spindle | 3500 1/min |
| Total number of tools in the turret | 12 pcs |
| Number of CNC controlled axles | 3 pcs |
Equipment | |
|---|---|
| FANUC 0i-TC | |
| Chip transporter | |
| Hydraulic chuck | |
