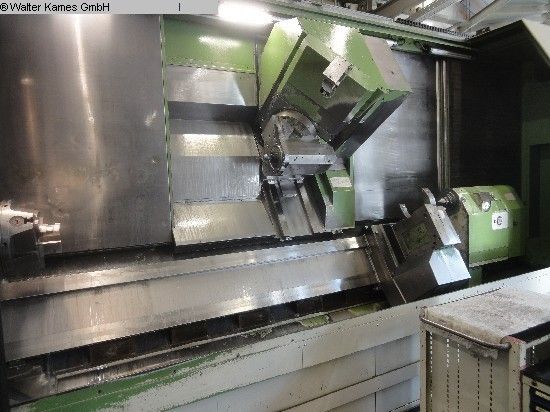

CNC Lathe Heyligenstaedt HEYNUFLEX 35

Category CNC Lathes and Turning Centers Heyligenstaedt ›
Manufacturer Heyligenstaedt ›

ARCHIVED AD
CNC Lathe Heyligenstaedt HEYNUFLEX 35 was manufactured by the machine manufacturer Heyligenstaedt. Machine Heyligenstaedt HEYNUFLEX 35 was built in 1995 year.

General data

Location Germany
region Nordrhein-Westfalen
Year of manufacture 1995
Warranty Without warranty

Technical parameters

Maximum turning length (Z-axis) 3958 mm
Turning diameter over bed (max) 890 mm
Turning diameter over cross slide (max) 810 mm
Minimum rotary speed of the main spindle 5 1/min
Maximum rotary speed of the main spindle 1800 1/min
Number of CNC controlled axles 3 pcs
Total power demand 95 kW
Weight of the lathe 19.5 t

Equipment

SIEMENS SINUMERIK 840 C
Y-axis
