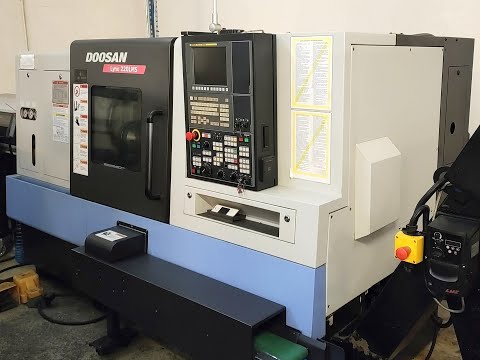

CNC Lathe DOOSAN LYNX 220 LMSC

Category CNC Lathes and Turning Centers DOOSAN ›
Manufacturer DOOSAN ›

ARCHIVED AD
CNC Lathe DOOSAN LYNX 220 LMSC was manufactured by the machine manufacturer DOOSAN. Machine DOOSAN LYNX 220 LMSC was built in 2015 year.

General data

Location Poland
region Dolnośląskie
Year of manufacture 2015
Warranty Without warranty
Technical condition Very good
Payment Before receipt
Transport The buyer organizes the transport at his own cost

Technical parameters

Maximum turning length (Z-axis) 510 mm
Turning diameter over bed (max) 240 mm
Maximum travel length in the X-axis 165 mm
Maximum feed rate in X-axis 30 m/min
Maximum feed rate in Z-axis 36 m/min
Number of spindles 2 pcs
Maximum power of the main spindle 15 kW
Maximum rotary speed of the main spindle 4500 1/min
Number of tool turrets 1 pcs
Total number of tools in the turret 12 pcs
Number of CNC controlled axles 3 pcs
Subspindle power 5.5 kW
Maximum subspindle speed 6000 1/min
Maximum rotary speed of the driven tool 6000 1/min
Length of the lathe 2763 mm
Width of the lathe 1627 mm
Height of the lathe 1655 mm
Weight of the lathe 3.4 t

Equipment

DOOSAN FANUC i Series
Measurement probe for the workpieces
Receiver of the finished parts
Chip transporter
Subspindle
