CNC Lathe DAEWOO PUMA 12 L

Category CNC Lathes and Turning Centers DAEWOO ›
Manufacturer DAEWOO ›

ARCHIVED AD

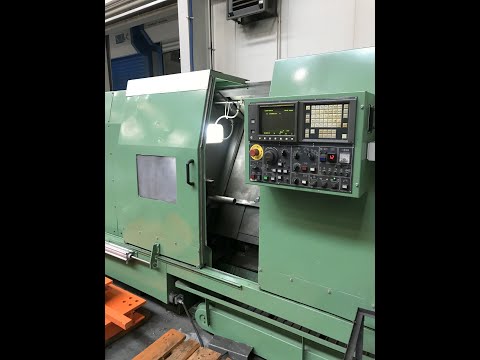

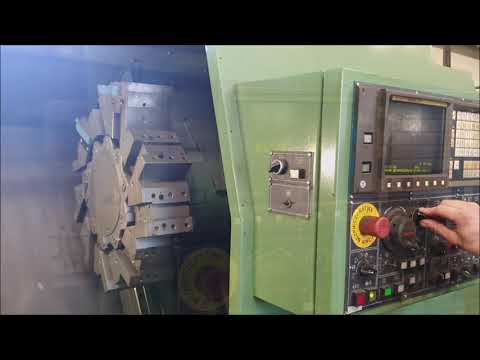

CNC Lathe DAEWOO PUMA 12 L was manufactured by the machine manufacturer DAEWOO. Machine DAEWOO PUMA 12 L was built in 1996 year.

General data

Location Poland
region Dolnośląskie
Year of manufacture 1996
Warranty Without warranty
Technical condition Good
Payment Before receipt
Transport The buyer organizes the transport at his own cost
Status A test can be performed

Technical parameters

Maximum turning length (Z-axis) 1020 mm
Turning diameter over bed (max) 570 mm
Maximum travel length in the X-axis 260 mm
Maximum feed rate in X-axis 12 m/min
Maximum feed rate in Z-axis 16 m/min
Minimum rotary speed of the main spindle 12 1/min
Maximum rotary speed of the main spindle 2500 1/min
Total number of tools in the turret 10 pcs
Total power demand 45 kW
Maximum travel length in the Y-axis 1050 mm
Length of the lathe 3175 mm
Width of the lathe 2080 mm
Height of the lathe 2015 mm
Weight of the lathe 6 t

Equipment

FANUC Series O-T
Chip transporter
Technical documentation
